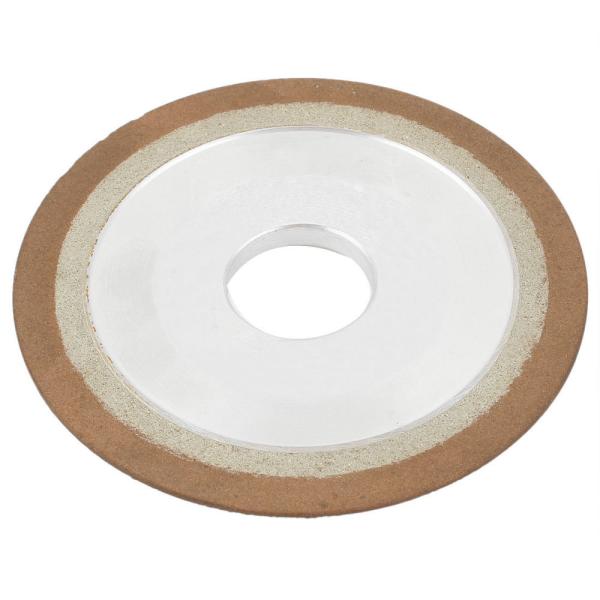

4B1 Resin Bond Diamond Grinding Wheel

Brand Name : OEM

Model Number : 4B1

Certification : MPA

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Delivery Time : 15 days

Packaging Details : Export standard

Bond : resin

Abrasive : Diamond / CBN

Shape : 4B1

Core material : Aluminum

Size : 100mm,125,150mm,etc.

Grit : D64,D46,D91 or as customers'required

Contact Now

1. 4B1 Resin Bond Diamond Grinding Wheel For Micro Drill Grooving Resin Diamond Grinding Wheel Bevelling Wheel

Resin bond Diamond & CBN grinding wheels are the most commonly used SuperAbrasive product currently consumed. Resin bond product, as the names describes, is a combination of resins and fillers pressed under heat and pressure that are easily dressed to straight, angle forms, and special radius forms.

4B1 Resin Bond Diamond Grinding Wheel

2. Specification:

Diameter(D)	Height (T)	Width(X)	Hole(H)
75	8	5	10,20
80	8	5	10,20
100	10	5	20
125	10	8	32
150	10	8	32
200	10	8	32

3. Industries Used:

a. Carbide cutting tool industry,

b. Ceramics industry,

c. Glass industry,

d. Quartz Industry,

e. Thermal spray industry

f. Other specialty materials

4.Types of Grinding:

a. Surface grinding,

b.OD grinding,

c. Center-less grinding,

d. Tool grinding,

e. Fine grinding,

f. Double disc grinding,

g. Slot grinding

5. Work pieces Materials for diamond:

a. Ceramics

b. carbides, glass

c. stone,

d. Quartz,Silicon other specialty materials

e. HVOF coatings (including various types of Colmonoy material

4B1 Resin Bond Diamond Grinding Wheel
